Don’t get me wrong, I loved my Bathing Beauty. But, my second one died and the price has skyrocketed to almost $800. Pretty rich for a glorified sump pump. Tried to find the pump without the name label on it but to no avail. No other pump has that tiny base that fits in the well in the tub that Hanvey puts in their vans. Probably made special which accounts for the price tag. So, I went looking for another solution and I found one. Price: About $200 bucks and an hour and a half of my time.

So, I am going to share my solution with you.

I loved the pressure that my Seaflo fresh water pump put out. That pump came with the unit and does great, but I thought that just a bit more power would be even better.

Driving fresh water is pretty easy, but driving recycled water from the tub has a few challenges. That water has dog hair in it. I solved that problem by having a screen on the suction end of the input tube and another at the pump. Both are super easy to clean.

So, let’s start with a parts list:

1. Seaflow pump SEAFLO 52-Series Water Pressure Diaphragm Pump – 12v, 5.5GPM, 60PSI
   https://www.amazon.com/gp/product/B072PYSRZ7/ref=ppx_yo_dt_b_search_asin_image?ie=UTF8&psc=1
2. Pump Inlet Filter Water Pump Strainer Filter, RV Replacement 1/2 Twist-On Pipe Strainer with 50 Mesh Stainless Steel Filter Screen Compatible with WFCO or Shurflo Pumps (2 Pieces)
3. Inlet Hose Strainer https://www.amazon.com/gp/product/B09M8MRH4R/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
4. Hose https://www.amazon.com/gp/product/B09FF488NW/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
5. Hose Clamps – Don’t skimp, cheap ones will not withstand the pressure https://www.amazon.com/gp/product/B0C38SMLVX/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
6. Hose Nozzle https://www.amazon.com/gp/product/B0187BOHPW/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
7. DC Cable Converter https://www.amazon.com/gp/product/B0187BOHPW/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
8. Male Hose Connector – 2 needed https://www.amazon.com/gp/product/B0187BOHPW/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
9. Power Supply https://www.amazon.com/dp/B07Q3VX2HZ?psc=1&ref=ppx_yo2ov_dt_b_product_details
10. Optional – Quick Connectors https://www.amazon.com/gp/product/B09V15V5TD/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
11. Misc screws, lag bolts to hold the pump in position. The kind will depend on where your pump will be located
12. Male Hose Connector https://www.amazon.com/Uenede-Fittings-Adapter-Connector-Stainless/dp/B0CMH51328/ref=sr_1_22_sspa?crid=18UQT74NECKRZ&keywords=male%2Bhose%2Bconnector&qid=1707445387&sprefix=male%2Bhose%2Bconnector%2Caps%2C347&sr=8-22-spons&sp_csd=d2lkZ2V0TmFtZT1zcF9tdGY&th=1
13. https://www.amazon.com/Wireless-Fosmon-Electrical-Weatherproof-Included/dp/B072F9DGRL/ref=sr_1_16?crid=2FNJIENV315N3&keywords=wireless+plugin+switch&qid=1707446780&sprefix=wireless+plugin+switch%2Caps%2C191&sr=8-16

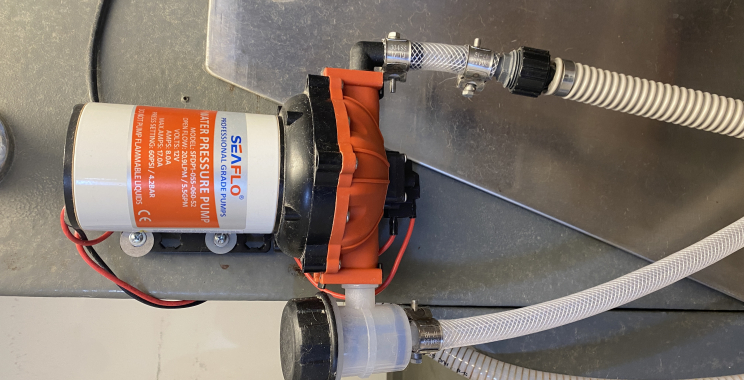

1. Find a convenient location for your pump and fasten it down using the 4 holes with the rubber feet on them. (Note: The rubber feet can be moved to several locations. Position as appropriate for your mounting location)
2. Install the appropriate inlet and exit adapter that came with the pump and works for your installation.
3. On the inlet side install item 2 above (there may be one that came with the pump)
4. On the outlet side install the appropriate connector for the hose(came with the pump)
5. Decide how long you need your hose, item 4 above, on the outlet side(going to your nozzle) and cut it
6. Place one of the clamps, item 5 above, on the hose.
7. Using hot water or a heat gun, heat the end of the hose to be connected to the outlet side of the pump and press onto the connector
8. Slide up the hose clamp and tighten, really tight
9. Place another hose clamp, item 5 above, onto the other end of the hose
10. Heat the end of the hose and insert connector, item 8 above.
11. Optional – Screw a quick connector onto the connector
12. Attach the hose nozzle, item 6 above
13. Determine the length of hose, item 4 above, needed to reach from the inlet side of the pump to the bottom of your tub or bottom of the sump if you have a tub with a sump
14. Place a hose clamp, item 5 above, on the hose
15. Heat the hose and press it onto the inlet connector
16. Move the clamp into position and tighten it
17. Slide a clamp, item 5 above, onto the hose
18. Heat the hose end and insert the male hose fitting, item 12 above
19. Slide the clamp into place and tighten
20. Connect the cable converter, item 7 above, to the pump, item 1 above, and the power supply , item 9 above
21. Plug the power supply, item 9 above, into remote control switch, item 13 above
22. Plug the remote control switch, item 13 above, into your power source
23. Fill your tub/sump and turn your pump on. I use the shower or flat setting to wash my dogs

NOTE: Depending on the location of your electric source you may need an extension cord

NOTE: I use the same hose sprayer on my fresh water line. I use the flat setting to rinse my dogs
